DIETZ FARM MUSHROOMS
|
We use a CARBON NEGATIVE ENERGY SOURCE here on
the mushroom farm. The main hardware
is a top lit up draft furnace. It is known
by initials: t.l.u.d.
We call it a
T-LUD
which we pronounce: Tee - lud "Tee" rhymes with "we"; "lud" rhymes with "bud" |

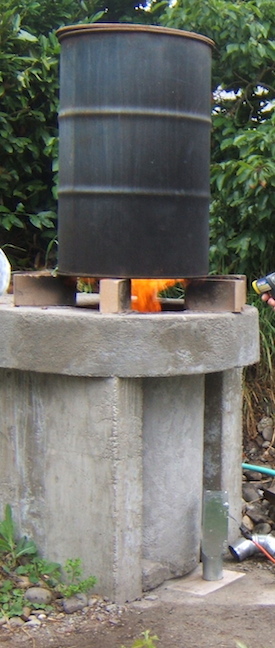

The t-lud works by
mixing smoke from air starved fire with pre-heated

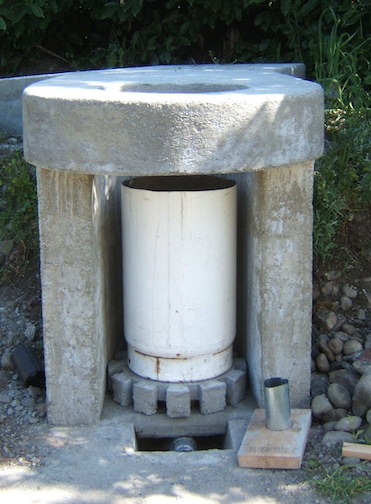

air. The inner cylinder holds
wood. Only 20% of the furnace's air is
allowed to enter this primary combustion
chamber. 80% is channeled between the
steel and concrete cylinders, where it is
pre-heated before being mixed with the smoky
primary air. |

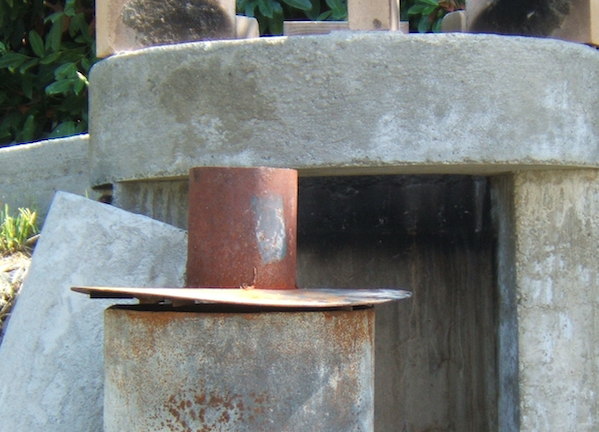

This is the t-lud's nozzle. It is held about 8" above the the primary air cylinder by 1/2" re-bars that protrude inside the concrete outer cylinder. This allows the 80% of the air to mix at the top of the primary combustion area. |
|

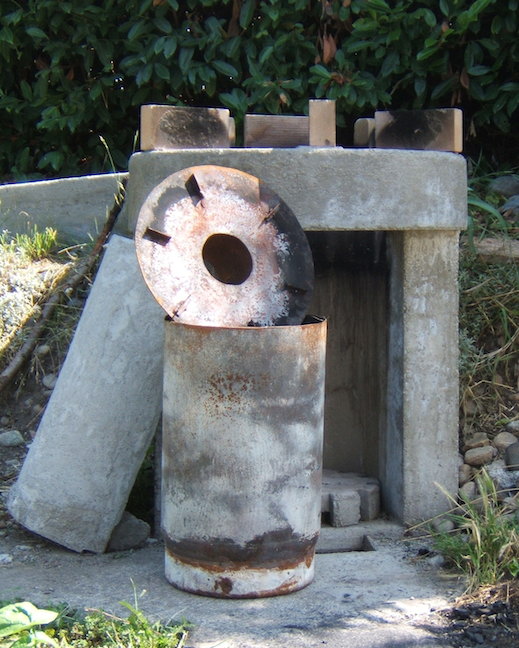

This view shows the underside of the nozzle and the shell that becomes the front of the concrete cylinder. |
![]() |

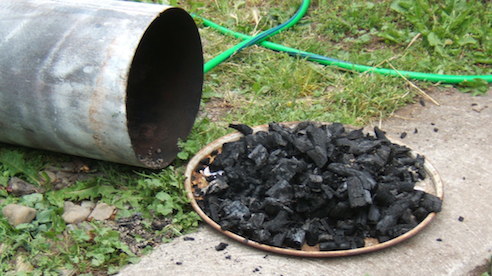

This is charcoal generated from one burn. This by-product may be used to grill steak. If not, it can be used to make bio-char. |
Sequim Terra Preta: 75% castings 20% bio-char 5% sand or clay |
This drawing of a happy red worm
was contributed by our granddaughter, Emily.
Would you like to use worms to compost left overs from your
kitchen (potato peels, Banana skins, Bread crumbs, apple
cores)?
We have worms on the Dietz Farm that are looking for new
homes.
If you would like to employ these hard-working hermaphrodites
but have no place to put them, we can solve your problem
with red worm condos.
These upward migrating bins feature a concrete filled base to
prevent tipping.
The bottom bin collects leachate that may be used for plant
food or to bio-charge charcoal.
A sheet of landscape fabric keeps the worms in the top three
bins.
Empty bins are added as each bin fills.
Each container is drilled to accept a vent with a fine screen.
A vent in each bin provides fresh air while keeping worms in.
